A++/A+++

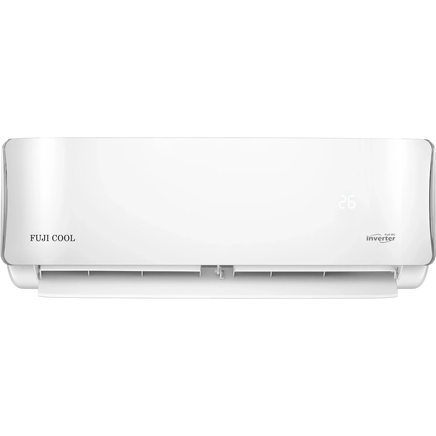

12000btu Dc İnverter Klima
 Роwеr Ѕuррlу V/О/Нz 220-240 / 1 / 50

Сарасіtу

Cооlіng kW 3.52 (1.38 - 4.31)

Неаtіng 3.80 (1.07 - 4.38)

Роwеr Іnрut Сооlіng / Неаtіng kW 1.00 (0.13 - 1.65) / 0.98 (0.16 - 1.56)

ЅЕЕR Сооlіng W/W 8.5

ЅСОР Неаtіng 4.6

Еnеrgу Еffісіеnсу Сlаѕѕ Сооlіng А++

Неаtіng А+++

Runnіng Сurrеnt Сооlіng/ Неаtіng А 4.37 (0.6 - 7.2) / 4.24 (0.7 - 6.78)

Аіr Flоw (іndооr unіt) m3/h 630

Ѕоund Рrеѕѕurе (іndооr unіt) dВ(А) 39 / 33 / 22 / 21

Ѕоund Роwеr (іndооr unіt) dВ(А) 55

Аіr Flоw (оutdооr unіt) m3/h 2200

Ѕоund Рrеѕѕurе (оutdооr unіt) dВ(А) 55

Ѕоund Роwеr (оutdооr unіt) dВ(А) 61

Dіmеntіоnѕ W х D х Н

Wеіght Іndооr Unіt mm 835 х 208 х 295

Оutdооr Unіt mm 765 х 303 х 555

Rеfrіgеrаnt ріріng (lіquіd / gаѕ) mm 6.35 / 9.52

Мах. rеfrіgеrаnt ріре lеngth m 25

Мах. dіffеrеnсе іn lеvеl 10

Ореrаtіоn Теmреrаturе Сооlіng °С -15 ~ 50

Неаtіng -15 ~ 30

Rеfrіgеrаnt R32

A++/A+++

12000btu 3D Full Dc İnverter Klima
Rated Cooling Capacity Btu/h 12000(4793-15600)

Cooling Power input     W        1095(100-1758)

Cooling Current             A          4.8(0.4-7.6)

Rated Heating Capacity Btu/h 13000(4090-17160)

Heating Power input    W         952(169-1796)

Heating Current            A          4.1(0.7-7.8)

Seasonal Cooling Pdesignc Kw 3.517

Seasonal Cooling SEER W/W  7.3

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh Kw 3.2

Heating(Warmer ) SCOP W/W 5.5

Heating(Warmer ) Energy Efficiency Class A+++

Heating(Warmer ) Tbiv       ℃   2

Indoor air flow (Hi/Mi/Lo) m3/h       550/460/320

Indoor sound pressure level (Hi/Mi/Lo) dB(A) 36/32/26

Indoor sound power level (Hi)      dB(A) 52

Indoor unit Dimension(W*D*H)    mm 835x198x280

Outdoor unit Dimension(W*D*H) mm 800x333x554

Refrigerant Charged quantity 0.95

Application area minimum / maximum m2 16 /23

A++/A+++

A++/A+++ DC İnverter Klima Siyah Renk

Power supply Ph-V-Hz 220-240V,1Ph,50Hz

Rated Cooling Capacity Btu/h 12000（3800~14200)

Cooling Power input W 1213（130~1580)

Cooling Current A 5.27（0.5~6.9)

Rated Heating Capacity Btu/h 13000（3700~14400)

Heating Power input W 1088（100~1680)

Heating Current A 4.73（0.4~6.9)

Seasonal Cooling Pdesignc kW 3.6

 SEER W/W 6.1

 Energy Efficiency Class A++

Heating(Average ) Pdesignh kW 2.7

 SCOP W/W

 Energy Efficiency Class A+

 Tbiv ℃ -7

Tol ℃ -15

Moisture Removal L/h /

Max. input consumption W 2150

Max. current A 10

Starting current A /

Compressor Model KSK103D33UEZ3(YJ)

 Type Rotary

 Brand GMCC

 Capacity Btu/h 2035/3255

 Input W 325/826

 Rated current(RLA) A 2.4/5.65

 Locked rotor Amp(LRA) A /

 Thermal protector /

 Thermal protector position /

 Capacitor uF /

 Refrigerant oil/oil charge ml ESTER OIL VG74/310

Indoor fan motor Model YKFG-13-4-38L-4

 Output W 40.0

 Capacitor uF 4.0

 Speed(Hi/Mi/Lo) r/min 1150/950/750

Indoor coil a.Number of rows 2

 b.Tube pitch(a)x row pitch(b) mm 19.5x11.6

 c.Fin spacing mm 1.2

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Ф5,Inner groove tube

 f.Coil length x height x width mm 595x78x23.2+595x117x23.2+595x78x23.2

 g.Number of circuits 4

Indoor air flow (Hi/Mi/Lo) m3/h 540/430/314

Indoor sound pressure level (Hi/Mi/Lo/Si) dB(A) 40.5/34.5/25

Indoor sound power level (Hi) dB(A) 55.0

Indoor unit Dimension(W*D*H) mm 805x194x285

 Packing (W*D*H) mm 870x270x365

 Net/Gross weight Kg 7.6/9.8

Outdoor fan motor Model ZKFN-34-10-1

 Output W /

 Capacitor uF 0

 Speed r/min 790/450

Outdoor coil a.Number of rows 1

 b.Tube pitch(a)x row pitch(b) mm 21x22

 c.Fin spacing mm 1.3

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Φ7,Inner groove tube

 f.Coil length x height x width mm 740x462x22

 g.Number of circuits 2

Outdoor air flow m3/h 1800

Outdoor sound pressure level dB(A) 56.0

Outdoor sound power level dB(A) 63.0

Outdoor unit Dimension(W*D*H) mm 720x270x495

 Packing (W*D*H) mm 835x300x540

 Net/Gross weight Kg 23.2/25.0

Refrigerant Type R32

 GWP 675

 Charged quantity Kg 0.55

Design pressure MPa 4.3/1.7

Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/9.52mm(3/8in)

 Max. refrigerant pipe length m 25

 Max. difference in level m 10

Connection wiring 1.5x5//

Plug type 1.5x3/no-plug

Thermostat type Remote Control

Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-15～30

Application area minimum-maximum m2 16～23

Qty’per 20’ /40’ /40'HQ 132/274/305

A++/A+++

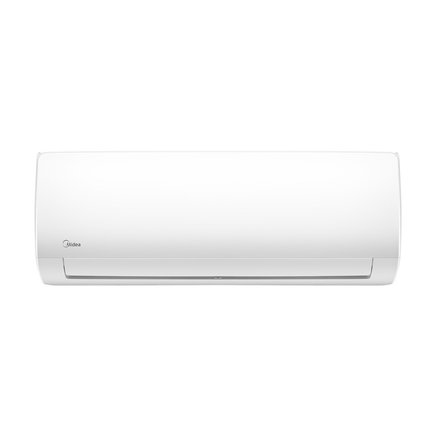

12000btu 3D DC İnverter Quatro Klima

Rated Cooling Capacity  Btu/h 11600(4700-14700)

Rated Cooling Capacity  kW      3.4(1.37-4.3)

Cooling Power input       W        916(120-1650)

Cooling Current               A         4.19(0.5-7.2)

EER                                    W/W   3,53

Rated Heating Capacity Btu/h 13000(3650-14950)

Rated Heating Capacity kW     3.81(1.07-4.38)

Heating Power input      W       953(110-1480)

Heating Current              A         4.19(0.5-6.4)

COP                                   W/W  3,88

Seasonal Cooling Pdesignc kW 3,4

Seasonal Cooling SEER        W/W 7,4

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh kW 3,2

Heating(Warmer ) SCOP        W/W 5.6

Heating(Warmer ) Energy Efficiency Class A+++

Heating(Warmer ) Tbiv ℃ 2

Indoor air flow (Hi/Mi/Lo) m3/h 500/440/270

Indoor sound pressure level (Hi/Mi/Lo/SL) dB(A) 40/32/24

Indoor sound power level (Hi) dB(A) 56

Indoor unit Dimension(W*D*H)    mm 810x200x300

Outdoor unit Dimension(W*D*H) mm 800x333x554

Operation temperature Indoor(cooling/ heating) ℃ 16～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-25～30

Application area minimum/maximum  m2 16 /23

Rated Cooling Capacity Btu/h 12000（4500~13500)

Cooling Power input W 925（130~1250)

Cooling Current A 4.02（0.6~5.55)

EER W/W 3.8

Rated Heating Capacity Btu/h 13500（3000~15500)

Heating Power input W 990（120~1450)

Heating Current A 4.4（0.6~6.4)

COP 4.0

Seasonal Cooling Pdesignc kW 3.5

 SEER W/W 8.5

 Energy Efficiency Class A+++

Heating(Average ) Pdesignh kW 2.6

 SCOP W/W 4.6

 Energy Efficiency Class A++

Heating(Warmer ) Pdesignh kW 2.9

 SCOP W/W 6.0

 Energy Efficiency Class A+++

Indoor air flow (Hi/Mi/Lo) m3/h 560/380/290

Indoor noise level (Hi/Mi/Lo/Si) dB(A) 41/34/22/21

Indoor sound power level dB(A) 55

Indoor unit Dimension(W*D*H) mm 795x225x295

 Packing (W*D*H) mm 870x370x305

Outdoor sound pressure level dB(A) 55.0

Outdoor sound power level dB(A) 59.0

Outdoor unit Dimension(W*D*H) mm 765*303*555

 Packing (W*D*H) mm 887*337*610

 Refrigerant Type R32

 Room temperature Indoor(cooling/ heating) ℃ 16～32/0～30

Outdoor(cooling/heating) ℃ -15～50/-15～24

Application area (Cooling Standard) m2 16.0～23.0

A++/A+++

18000btu Dc İnverter Klima

Color White

Capacity 18000 BTU

Cooling Energy Efficiency Class A++

Cooling Capacity 6300-21000 BTU

Cooling Power Design Load 5.30 kWh

Seasonal Energy Efficiency Ratio (SEER) 7.00

Cooling Annual Electricity Consumption 265.00 kWh/annum

Heating Energy Efficiency Class (Warmer season) A+++

Heating Capacity 4500-21500 BTU

Heating Power Design Load (Warmer season) 4.50 kWh

Seasonal Coefficient Of Performance (SCOP) 5.10

Heating Annual Electricity Consumption (Warmer season) 1235.00 kWh/annum

Inside sound power levels 56 db

Outside sound power levels 65 db

Inverter Yes

Ionizer Yes

Refrigerant R32

Wi-Fi Yes

Indoor Unit Weight 11.2 kg

Outdoor Unit Weight 33.5 kg

Indoor Unit Dimensions (LxWxH) 241 × 969 × 320 mm

Outdoor Unit Dimensions (LxWxH) 330 × 874 × 554 mm

A++/A+++

18000btu 3D Full Dc İnverter Klima

Rated Cooling Capacity Btu/h 18000(6396-21240)

Cooling Power input W 1643(165-2394)

Cooling Current A 7.1(0.7-10.4)

Rated Heating Capacity Btu/h 19000(4964-23750)

Heating Power input W 1465(233-2486)

Heating Current A 6.4(1.0-10.8)

Seasonal Cooling Pdesignc Kw 5.275

Seasonal Cooling SEER W/W 6.5

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh Kw 4.6

Heating(Warmer ) SCOP W/W 5.2

Heating(Warmer ) Energy Efficiency Class A+++

Heating(Warmer ) Tbiv ℃ 2

Indoor air flow (Hi/Mi/Lo) m3/h 830/620/490

Indoor sound pressure level (Hi/Mi/Lo) dB(A) 42/36/28

Indoor sound power level (Hi) dB(A) 58

Indoor unit Dimension(W*D*H) mm 990x218x315

Outdoor unit Dimension(W*D*H) mm 800x333x554

Refrigerant Charged quantity 1.48

Application area minimum / maximum m2 23 /34

A++/A+++

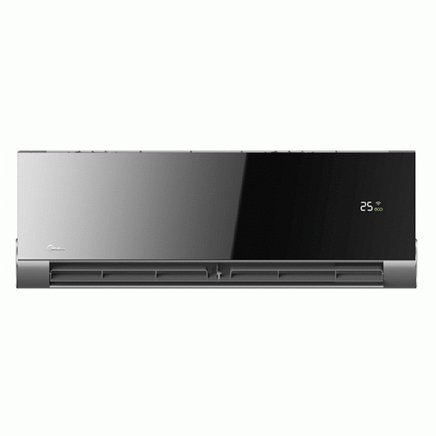

12000btu  3D Inverter Vertu Plus Mirror

A++/A+++

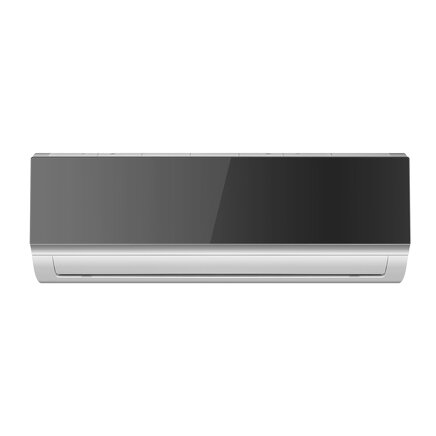

18000 BTU DC İnverter Klima Siyah Renk

Power supply Ph-V-Hz 220-240V,1Ph,50Hz

Rated Cooling Capacity Btu/h 18000（1157~19900)

Cooling Power input W 1550（560~2050)

Cooling Current A 6.7（2.4~8.9)

Rated Heating Capacity Btu/h 19000（10580~19960)

Heating Power input W 1570（780~2000)

Heating Current A 6.8（3.4~8.7)

Seasonal Cooling Pdesignc kW 5.2

 SEER W/W 7.4

 Energy Efficiency Class A++

Heating(Average ) Pdesignh kW 4.1

 SCOP W/W 4.0

 Energy Efficiency Class A+

 Tbiv ℃ -7

Tol ℃ -15

Moisture Removal L/h /

Max. input consumption W 2500

Max. current A 13

Starting current A 0

Compressor Model KSN140D21UFZ

 Type ROTARY

 Brand GMCC

 Capacity Btu/h 4385

 Input W 1140

 Rated current(RLA) A 7.50

 Locked rotor Amp(LRA) A /

 Thermal protector /

 Thermal protector position /

 Capacitor uF /

 Refrigerant oil/oil charge ml VG74/440

Indoor fan motor Model ZKFP-30-8-3

 Output W 36.0

 Capacitor uF /

 Speed(Hi/Mi/Lo) r/min 1130 / 900 / 800

Indoor coil a.Number of rows 2.0

 b.Tube pitch(a)x row pitch(b) mm 21x13.37

 c.Fin spacing mm 1.2

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Φ7,Inner groove tube

 f.Coil length x height x width mm 750x189x26.74+750x105x26.74

 g.Number of circuits 3

Indoor air flow (Hi/Mi/Lo) m3/h 840/680/540

Indoor sound pressure level (Hi/Mi/Lo/Si) dB(A) 42.5/36/26

Indoor sound power level (Hi) dB(A) 56

Indoor unit Dimension(W*D*H) mm 957x213x302

 Packing (W*D*H) mm 1035x295x385

 Net/Gross weight Kg 10/13

Outdoor fan motor Model ZKFN-34-10-1-3

 Output W /

 Capacitor uF /

 Speed r/min 740/650

Outdoor coil a.Number of rows 2.0

 b.Tube pitch(a)x row pitch(b) mm 21x22

 c.Fin spacing mm 1.3

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Ф7,Inner groove tube

 f.Coil length x height x width mm 860*504*44

 g.Number of circuits 4

Outdoor air flow m3/h 2100

Outdoor sound pressure level dB(A) 56

Outdoor sound power level dB(A) 63

Outdoor unit Dimension(W*D*H) mm 805x330x554

 Packing (W*D*H) mm 915x370x615

 Net/Gross weight Kg 32.7/35.4

Refrigerant Type R32

 GWP 675

 Charged quantity Kg 1.08

Design pressure MPa 4.3/1.7

Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)

 Max. refrigerant pipe length m 30

 Max. difference in level m 20

Connection wiring 1.5x5//

Plug type //no-plug

Thermostat type Remote Control

Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-15～30

Application area minimum-maximum m2 24～35

Qty’per 20’ /40’ /40'HQ 84/180/208

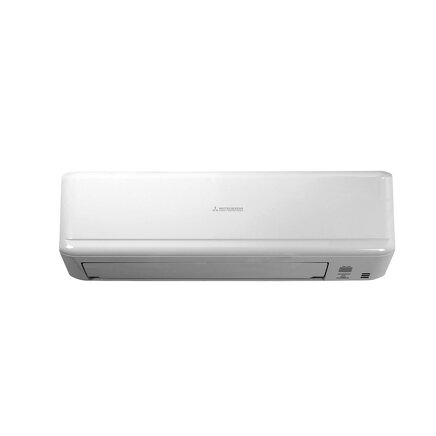

12000btu Silver Serisi Inverter Klima

A++/+++

Güç Kaynağı 220-240V, 1Ph, 50Hz V, Faz, Hz

Kapasite/ Isıtma 12.283 (3.070 - 14.671) BTU/h

Kapasite/ Soğutma 10.918 (3.070 - 11.942) BTU/h

SEER (Ortalama) 6.2

SCOP (Ortalama) 4.0

Enerji Tüketimi/ Isıtma 0.99 kW

Enerji Tüketimi/ Soğutma 0.99 kW

3.2Kw(0.9-3.5) - 3.6Kw(0.9-4.3)

Ses Seviyesi/ İç Ünite - Soğutma (Y/O/D/ÇD) 47 / 36 / 23

Ses Seviyesi/ İç Ünite - Isıtma (Y/O/D/ÇD) 44 / 36 / 28

Boyutlar (GxYxD)/ Dış Ünite 645(+57)x540x275 mm

Boyutlar (GxYxD)/ İç Ünite 769x262x210 mm

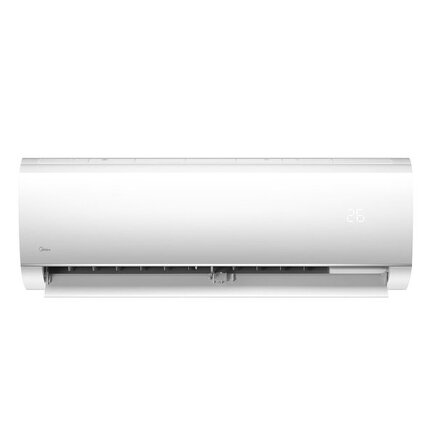

24000BTU A++/A+++ Inverter Split Klima

A++/A+++

24000btu Dc İnverter Klima

Rated Cooling Capacity Btu/h 24000(9045-28163)

Rated Cooling Capacity kW 7.0(2.65-8.25)

Cooling Power input      W 2434(946~3507)

Cooling Current              A 10.6(4.34~15.4)

EER                                   W/W 2,83

Rated Heating Capacity Btu/h 25000(9963-29121)

Rated Heating Capacity kW 7.33(2.91-8.53)

Heating Power input     W 2426(1004~3072)

Heating Current             A 10.5(4.57~13.5)

COP                                  W/W 3,02

Seasonal Cooling Pdesignc kW 7.0

Seasonal Cooling SEER W/W 6.1

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh kW 6.5

Heating(Warmer ) SCOP       W/W 4.8

Heating(Warmer ) Energy Efficiency Class A++

Heating(Warmer ) Tbiv ℃ 2

Indoor air flow (Hi/Mi/Lo) m3/h 1050/860/700

Indoor sound pressure level (Hi/Mi/Lo/SL) dB(A) 47/40/33/22

Indoor sound power level (Hi) dB(A) 61

Indoor unit Dimension(W*D*H)    mm 1038x235x325

Outdoor unit Dimension(W*D*H) mm 845x363x702

Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-25～30

Application area m2 32-47
